Power & Reliability

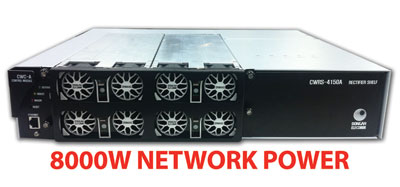

The CWRS-4150A modular power system provides up to 8KW of power in a 2U shelf. It is UL Listed and designed to meet NEBS requirements. It includes battery backup and two separate AC input ports, allowing for AC redundancy and smaller input cords.
Flexibility & Configurability
The number of rectifier modules and the size of load breakers and battery breakers are all configurable. Two separate battery strings can be charged and monitored. The controller allows for remote monitoring via Ethernet and supports TCP/IP and SNMP protocols.
Key Features:
- 2RU Height, 19″ to 23″ 8KW Power Shelf
- -54VDC 148A Output, configurable
- (3) configurable 80A Load Breakers
- (2) configurable 100A Battery Breakers
- Easy Access Wiring
- 2 LVD Circuits; Battery Charging
- Remote Access via Ethernet
- SNMP Interface
- RS232 Serial Interface
- Worldwide EMI and Safety Agency Approvals
- NEBS Certified
A 96% HIGH EFFICIENCY version is available upon request.
